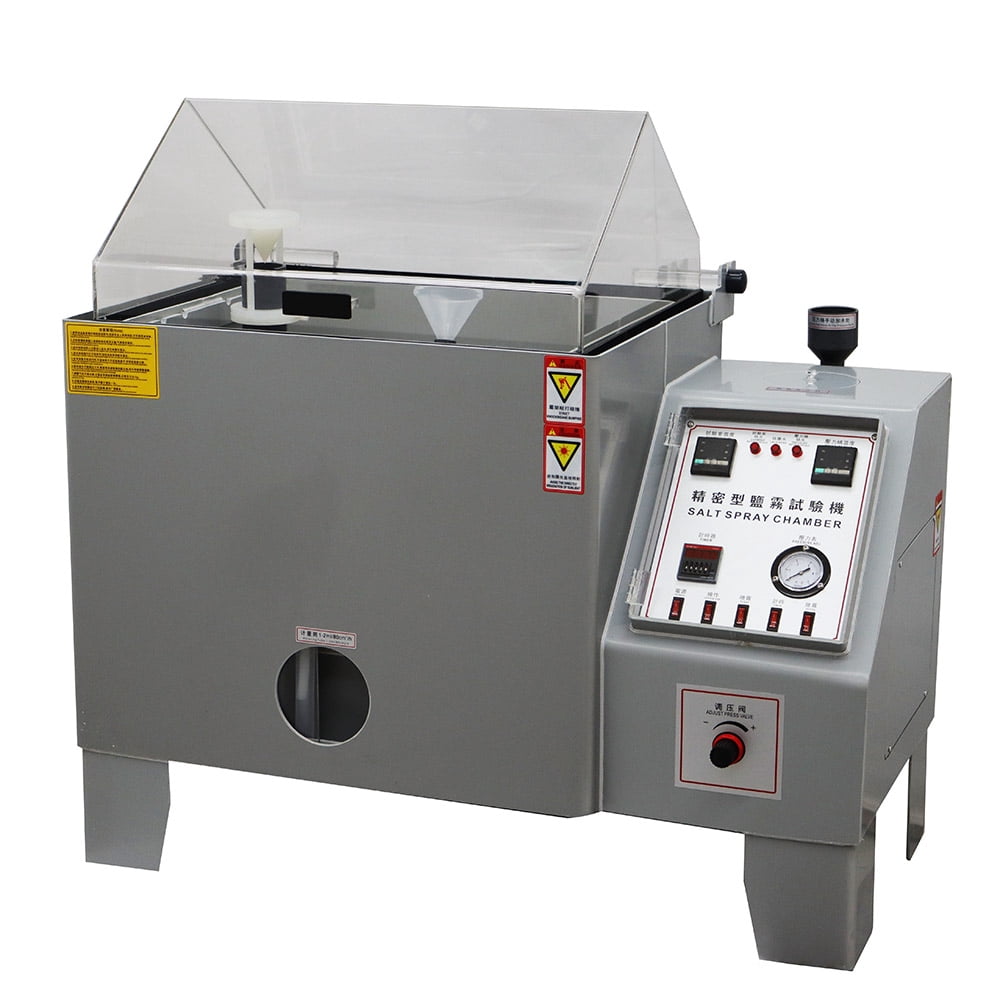

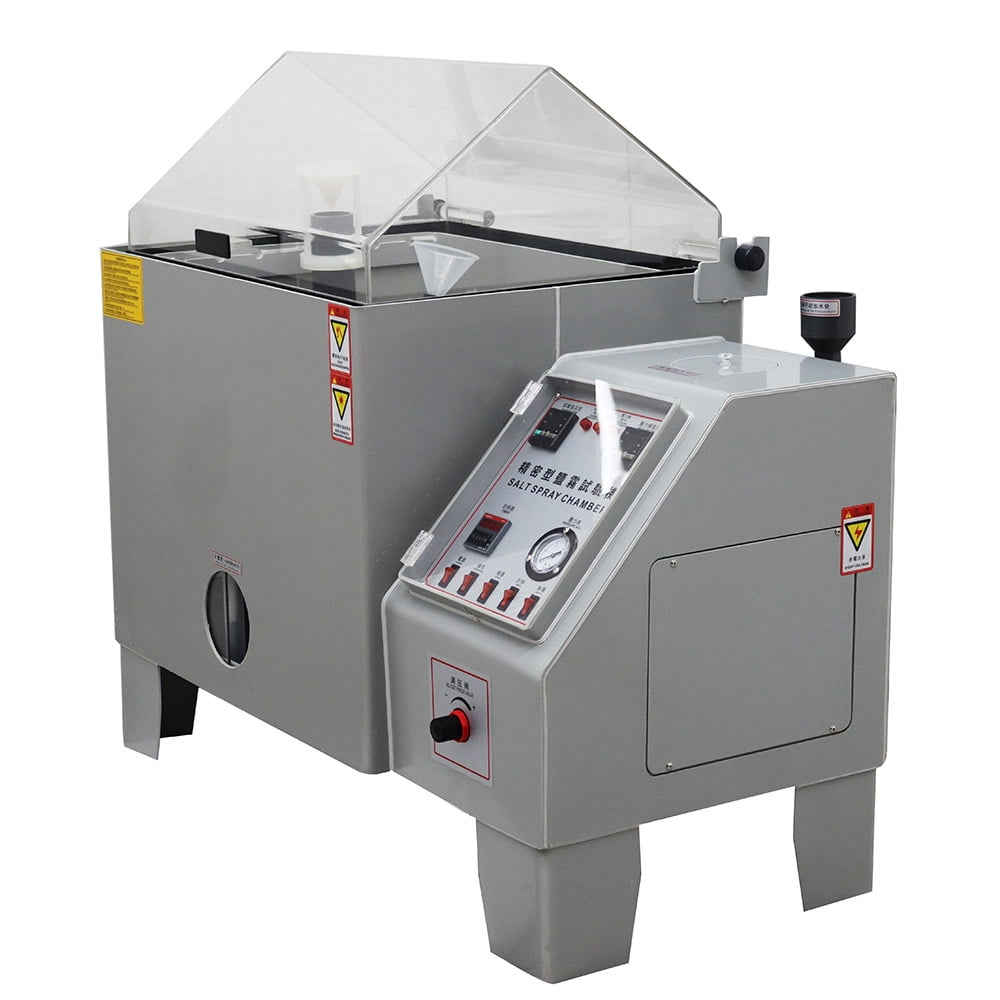

110L Salt Spray Testing Chamber Experimental Salt Spray Tester Salt Mist Resistance Tester

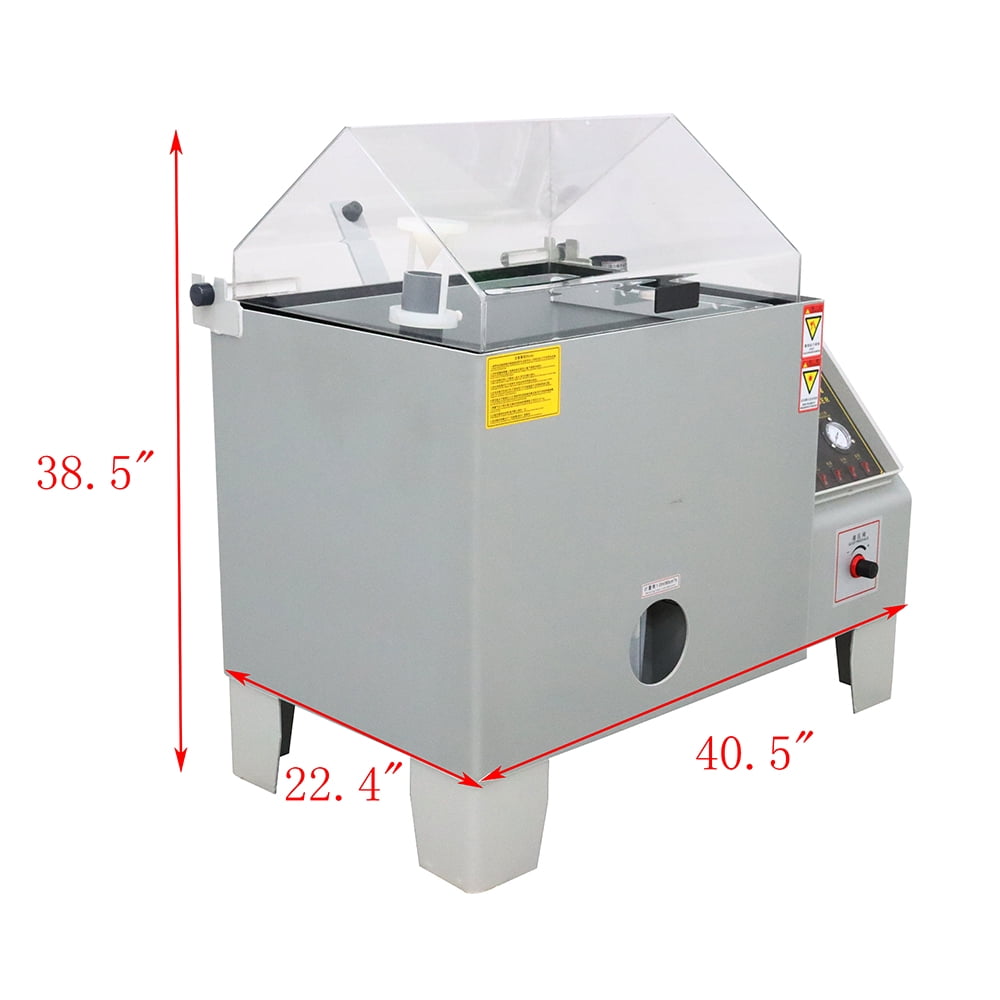

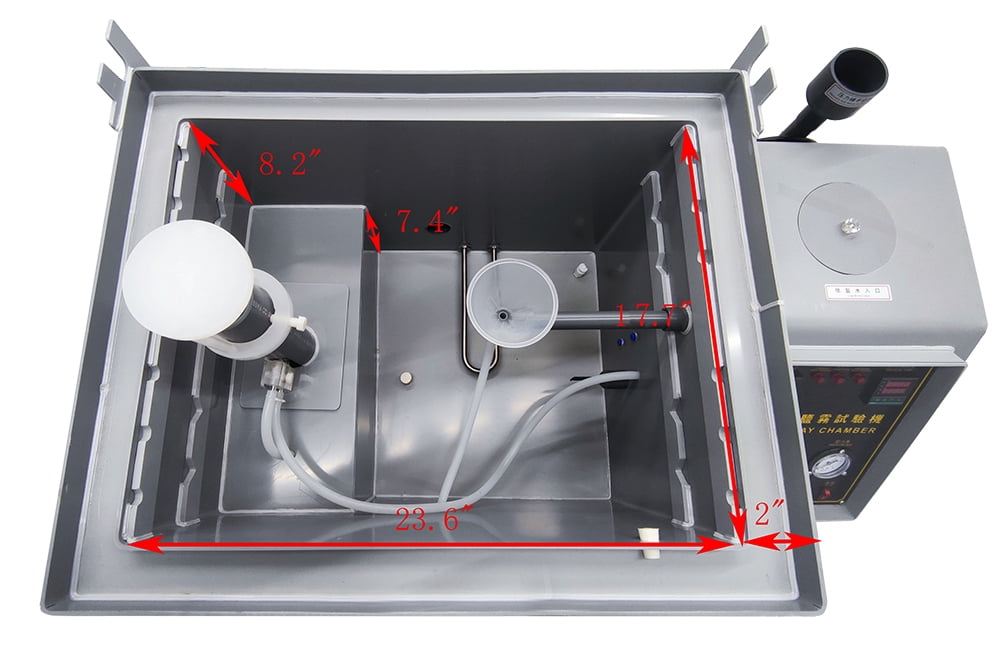

Introduction: <br> Salt water spray testing machine is for various materials surface treatment, including coating, electroplating, organic and inorganic skin film, anodic treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, so as to establish the quality of products.<br><br> All materials:<br> Laboratory of imported PVC board, thickness of 5 mm, durable temperature at 85 ℃.<br> The seal cover of the laboratory is made of imported European acrylic plate with a thickness of 5mm.<br> The refill bottle adopts hidden type water level gauge, which is easy to clean and is not prone to break.<br> The pressure air tank is 304 stainless steel and high pressure resistant tank with excellent thermal insulation performance.<br> The basket of the laboratory adopts a plane dividing frame, which can be adjusted at any Angle. All sides where the fog falling and the sides which are affected by fog are exactly the same, and the number of test pieces is large.<br><br> Parameters:<br> Voltage: 110V<br> Power: 2000W<br> Laboratory volume: 110L<br> Inner size: 23.6*17.7*15.7 inch (600*450*400mm)<br> Outer size: 40.5*22.4*38.5 inch (1030*570*980mm)<br> Spray method: continuous<br><br> Note: The panels of the two models are delivered randomly.<br><br> Features:<br> All equipment needed in the test: Spray nozzle, salt water barrel, test piece support, spray liquid collection container, test chamber, salt water, supply tank, pressure tank, supply equipment and exhaust equipment required for compressed air, the device is shown in the figure, and the test is conducted as follow.<br> Blunt material is required, it is required that the material itself cannot be corroded, and it can not affect the corrosion test.<br> The fog nozzle cannot spray the test liquid directly to the sample , the solution at the top of the spraying chamber cannot drop on the test piece.<br> The test liquid dropping from test piece cannot flow back to the salt bucket again for the test.<br> The solution should not contain grease and dust, so you have to prepare an air cleaner.<br> The level area of the spray taking device is 80 cm2, the diameter is about 10 cm. Put the spray taking device beside the test piece.<br> Spray liquid should be collected for at least 16 hours, and the average of the solution collected in one hour is 1-2ml. Use the final average to represent the amount of spray.<br> The concentration of the Sodium Chloride Solution should be maintained at 40~60g/L.<br> The temperature of the pressure barrel should be kept in 47+1 DEG C, temperature of the salt water barrel should be kept in 35+1 DEG C.<br><br> Item Number(239015):<br> 1*Salt spray testing chamber

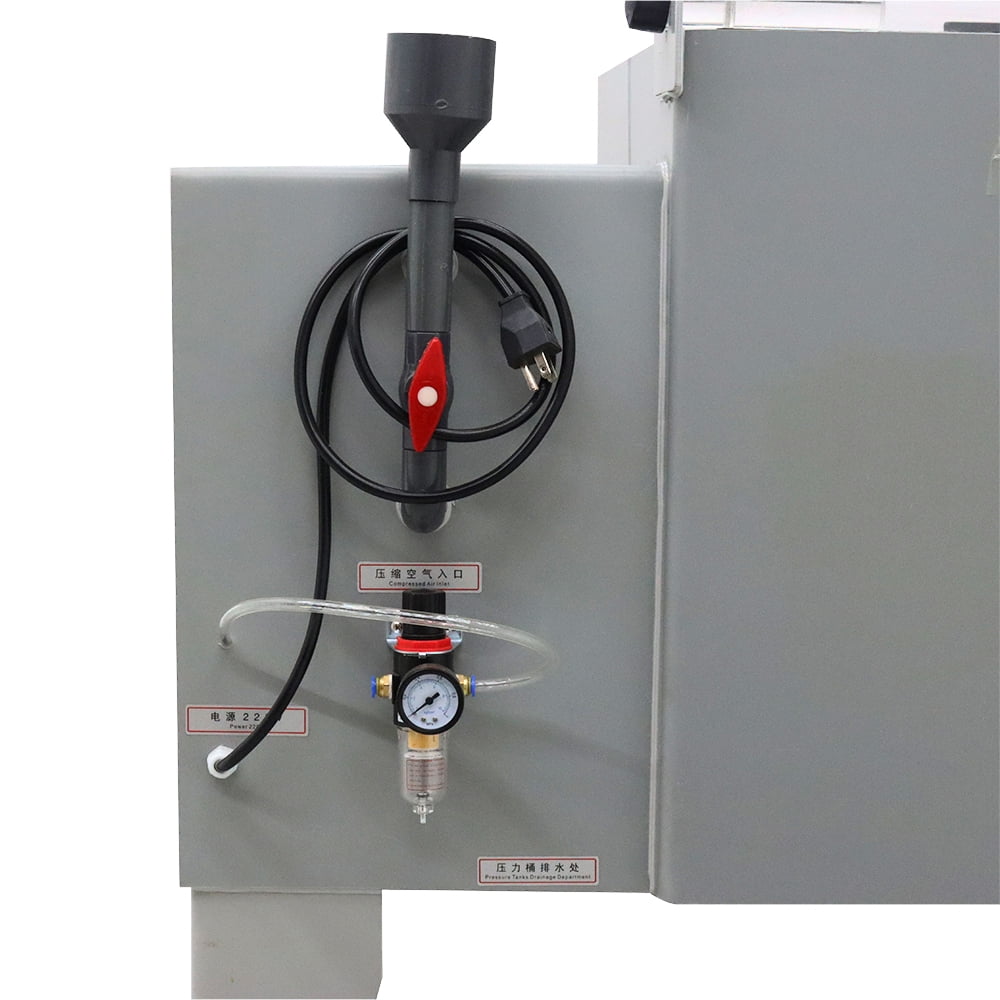

• 【With Pressure Gauge】The Salt Spray Machine has a pressure gauge to show the pressure inside the chamber so that you can make adjustment when the inside pressure is not within the normal range.
• 【High Quality】The seal cover of the laboratory is made of high quality acrylic plate with a thickness of 5mm. The refill bottle adopts hidden type water level gauge, which is easy to clean and not easy to break. He pressure air tank is sust 304 stainless steel and high pressure resistant tank with excellent thermal insulation performance.

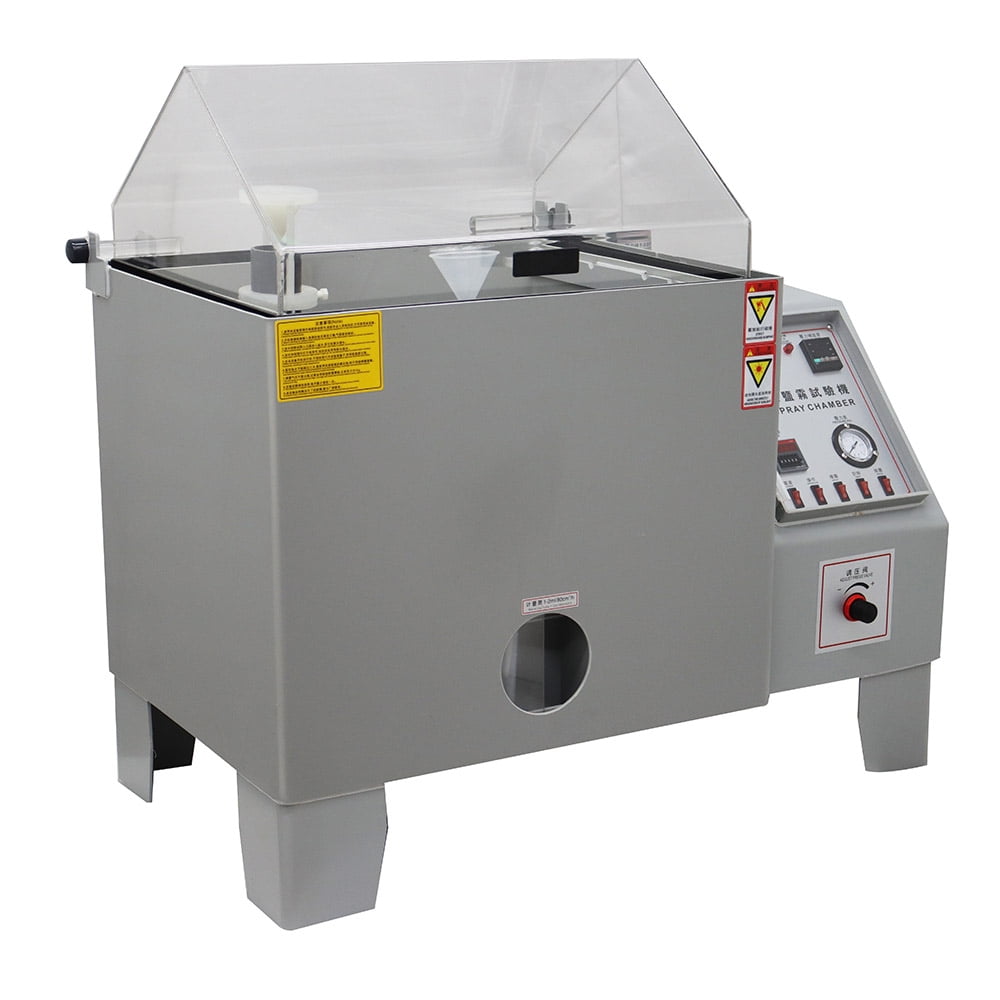

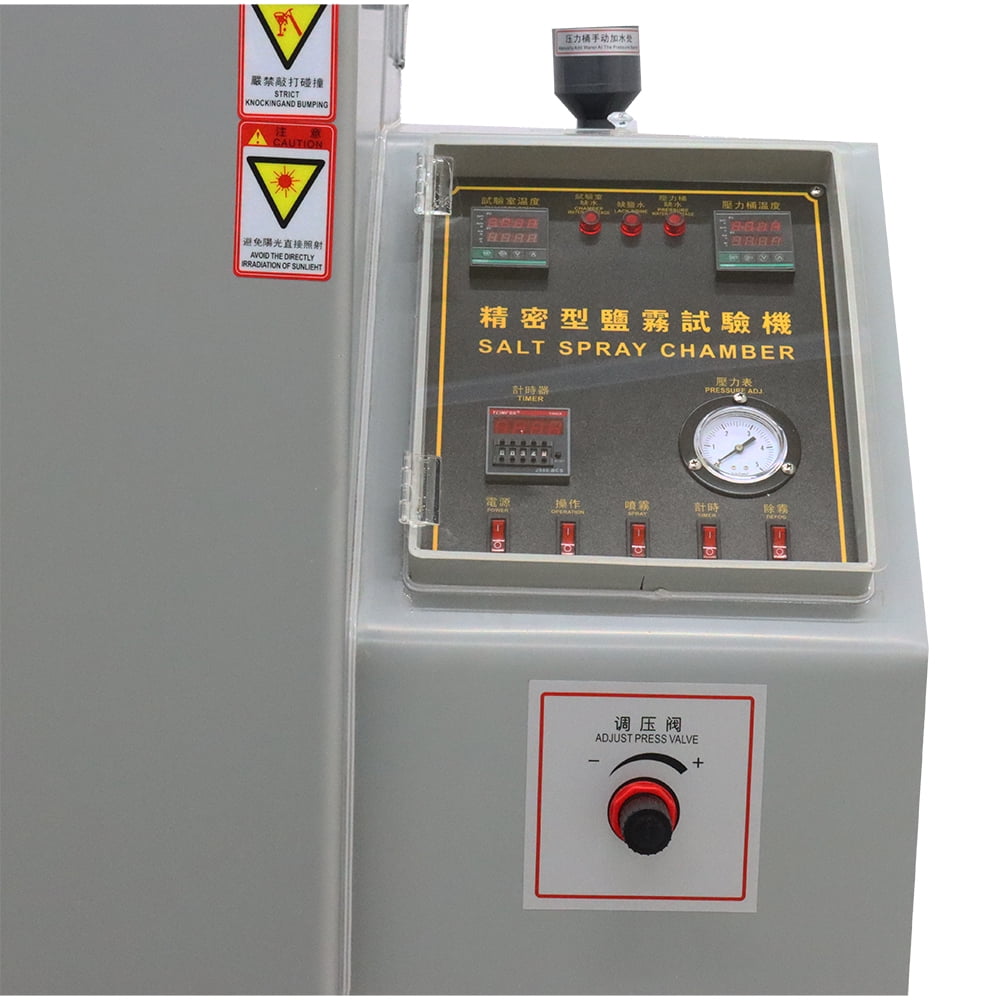

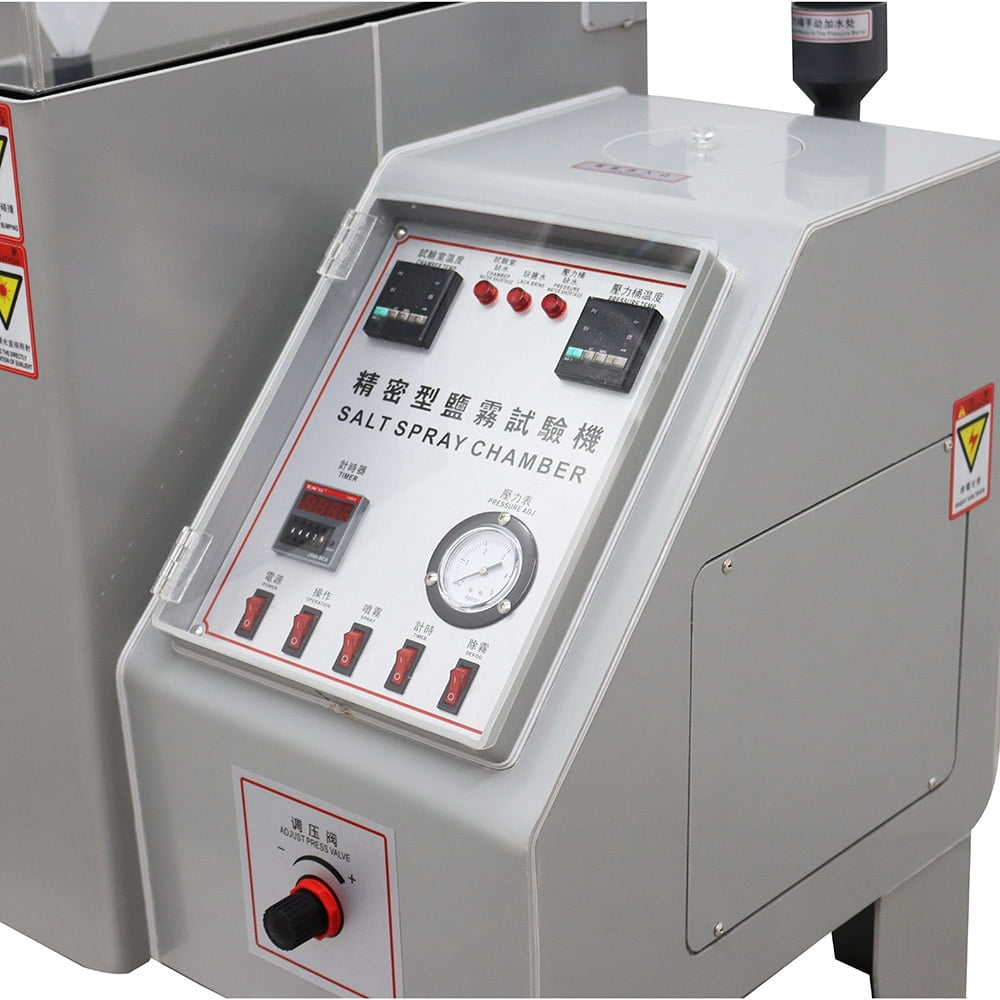

• 【With Detection System】 Intelligent control panel with digital display. Each function has its own switch. When a fault occurs, the corresponding indicator will light up.
• 【Spray Flow Rate Can be Adjusted】Spray flow rate adjustment 1-2m1 (m1/8ocm'/nh) (16-hour average). Spray mode is continuous type.
• 【Application】It's used to test the corrosion resistance of the electrode posited coating of many kinds of metallic materials. Use the salt spray test machine to spray the Sodium Chloride Solution to the surface of electric coating to achieve the purpose of detection.
